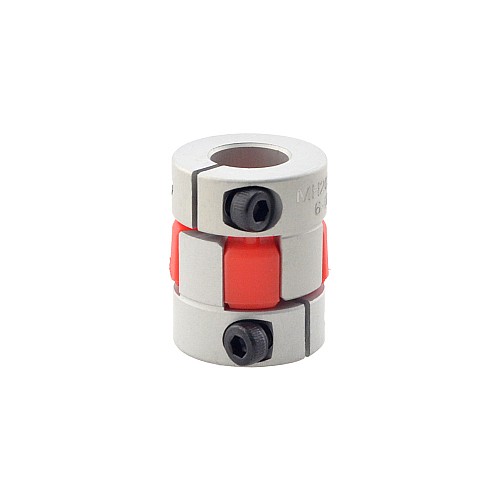

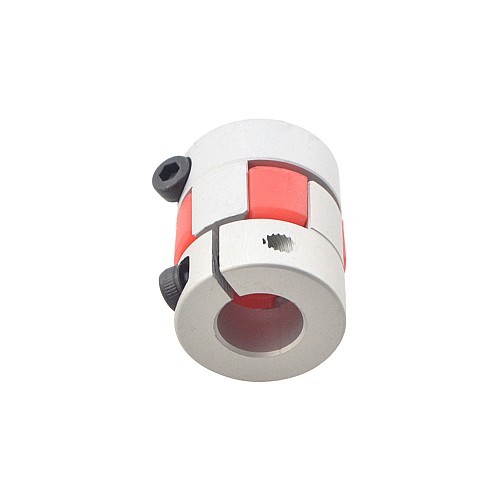

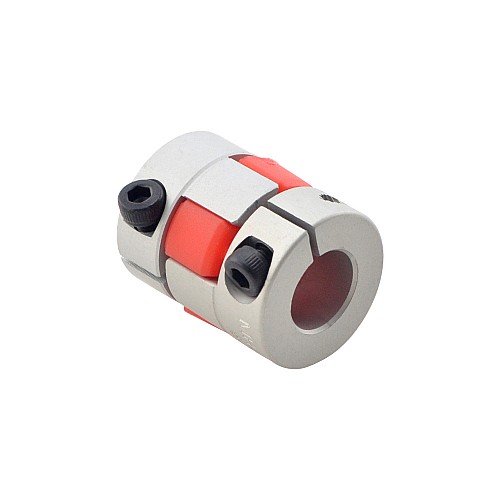

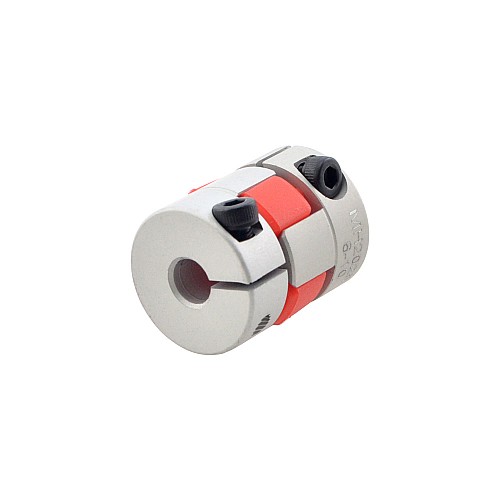

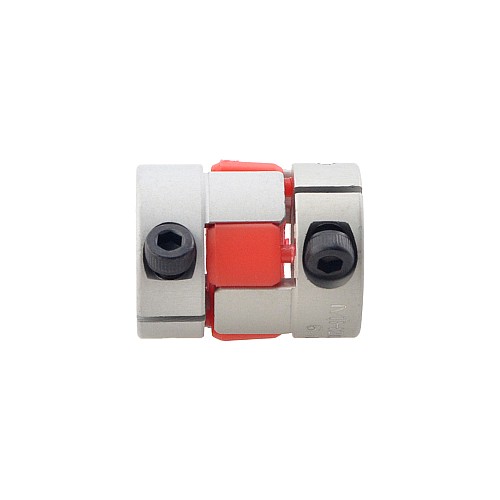

6mm - 10mm Esnek Çeneli Kaplin 20x25mm CNC Adım Motoru Şaft Kaplini
139,21 TL
5 + 132,38 TL
10 + 125,98 TL
50 + 120,42 TL
100 + 115,30 TL
- Stokta var: 10000
- Modeli: MH2025-6-10
- Brüt ağırlık: 0.07kg
- Sertifikalı: ISO
Şartname
- Parça Numarası: MH2025-6-10
- Tip: Çene Tipi
- Nominal Tork: 2,8 Nm (396,42 oz.in)
- Maksimum Tork: 5,6 Nm (792,84 oz.in)
- Maksimum Hız: 17000rpm
- Eylemsizlik Momenti: 6,7*10 -7 kg*m 2
- Statik Burulma Yay Sabiti: 55 Nm/rad
- Delik Çapı (d1-d2): 6mm - 10mm
- Gövde Dış Çapı (D): 20mm
- Gövde Uzunluğu (U): 25mm
- Malzeme Türü: Alüminyum
- Ağırlık: 17g
| Model(Jaw) | d1(mm) | d2(mm) | D(mm) | L(mm) | L1(mm) | L2(mm) | Clamp Screw | Rated Torque(Nm) | Max.Torque(Nm) | Max.Speed(rpm) | Moment of Inertia(kg.cm2) | Static Torsional Spring Constant(Nm/rad) | Radial Deviation(°) | Angle Deviation(°) | Axial Deviation(°) | Weight | |||
| M(mm) | Distance1(F) | Distance2(G) | Tightening Torque | ||||||||||||||||
| MH2025-5-5 | 5 | 5 | 20 | 25 | 7.5 | 10 | M3 | 3.75 | 7 | 1.3 | 2.8 | 5.6 | 17000 | 6.7*10-4 | 55 | 0.02 | 1 | 0.6 | 17 |
| MH2025-5-6 | 5 | 6 | 20 | 25 | 7.5 | 10 | M3 | 3.75 | 7 | 1.3 | 2.8 | 5.6 | 17000 | 6.7*10-5 | 55 | 0.02 | 1 | 0.6 | 17 |
| MH2025-5-6.35 | 5 | 6.35 | 20 | 25 | 7.5 | 10 | M3 | 3.75 | 7 | 1.3 | 2.8 | 5.6 | 17000 | 6.7*10-6 | 55 | 0.02 | 1 | 0.6 | 17 |
| MH2025-5-8 | 5 | 8 | 20 | 25 | 7.5 | 10 | M3 | 3.75 | 7 | 1.3 | 2.8 | 5.6 | 17000 | 6.7*10-6 | 55 | 0.02 | 1 | 0.6 | 17 |
| MH2025-6-10 | 6 | 10 | 20 | 25 | 7.5 | 10 | M3 | 3.75 | 7 | 1.3 | 2.8 | 5.6 | 17000 | 6.7*10-7 | 55 | 0.02 | 1 | 0.6 | 17 |
| MH2025-6.35-6.35 | 6.35 | 6.35 | 20 | 25 | 7.5 | 10 | M3 | 3.75 | 7 | 1.3 | 2.8 | 5.6 | 17000 | 6.7*10-8 | 55 | 0.02 | 1 | 0.6 | 17 |
| MH2025-6.35-8 | 6.35 | 8 | 20 | 25 | 7.5 | 10 | M3 | 3.75 | 7 | 1.3 | 2.8 | 5.6 | 17000 | 6.7*10-9 | 55 | 0.02 | 1 | 0.6 | 17 |
| MH2025-6.35-10 | 6.35 | 10 | 20 | 25 | 7.5 | 10 | M3 | 3.75 | 7 | 1.3 | 2.8 | 5.6 | 17000 | 6.7*10-10 | 55 | 0.02 | 1 | 0.6 | 17 |
| MH2025-8-8 | 8 | 8 | 20 | 25 | 7.5 | 10 | M3 | 3.75 | 7 | 1.3 | 2.8 | 5.6 | 17000 | 6.7*10-11 | 55 | 0.02 | 1 | 0.6 | 17 |
| MH2025-8-10 | 8 | 10 | 20 | 25 | 7.5 | 10 | M3 | 3.75 | 7 | 1.3 | 2.8 | 5.6 | 17000 | 6.7*10-12 | 55 | 0.02 | 1 | 0.6 | 17 |
| MH2530-6.35-8 | 6.35 | 8 | 25 | 30 | 9.5 | 11 | M3 | 5 | 8 | 1.5 | 6 | 12 | 16000 | 7.6*10-4 | 63 | 0.02 | 1 | 0.6 | 30 |
| MH2530-6.35-10 | 6.35 | 10 | 25 | 30 | 9.5 | 11 | M3 | 5 | 8 | 1.5 | 6 | 12 | 16000 | 7.6*10-5 | 63 | 0.02 | 1 | 0.6 | 30 |
| MH2530-8-8 | 8 | 8 | 25 | 30 | 9.5 | 11 | M3 | 5 | 8 | 1.5 | 6 | 12 | 16000 | 7.6*10-6 | 63 | 0.02 | 1 | 0.6 | 30 |
| MH2530-8-10 | 8 | 10 | 25 | 30 | 9.5 | 11 | M3 | 5 | 8 | 1.5 | 6 | 12 | 16000 | 7.6*10-7 | 63 | 0.02 | 1 | 0.6 | 30 |
| MH2530-8-12 | 8 | 12 | 25 | 30 | 9.5 | 11 | M3 | 5 | 8 | 1.5 | 6 | 12 | 16000 | 7.6*10-8 | 63 | 0.02 | 1 | 0.6 | 30 |
| MH2530-10-12 | 10 | 12 | 25 | 30 | 9.5 | 11 | M3 | 5 | 8 | 1.5 | 6 | 12 | 16000 | 7.6*10-9 | 63 | 0.02 | 1 | 0.6 | 30 |
| MH3035-8-14 | 8 | 14 | 30 | 35 | 11.5 | 12 | M4 | 5.75 | 11 | 1.7 | 6.5 | 13 | 15000 | 8.5*10-4 | 72 | 0.02 | 1 | 0.6 | 50 |
| MH3035-12-14 | 12 | 14 | 30 | 35 | 11.5 | 12 | M4 | 5.75 | 11 | 1.7 | 6.5 | 13 | 15000 | 8.5*10-5 | 72 | 0.02 | 1 | 0.6 | 50 |
| MH3035-14-14 | 14 | 14 | 30 | 35 | 11.5 | 12 | M4 | 5.75 | 11 | 1.7 | 6.5 | 13 | 15000 | 8.5*10-6 | 72 | 0.02 | 1 | 0.6 | 50 |
